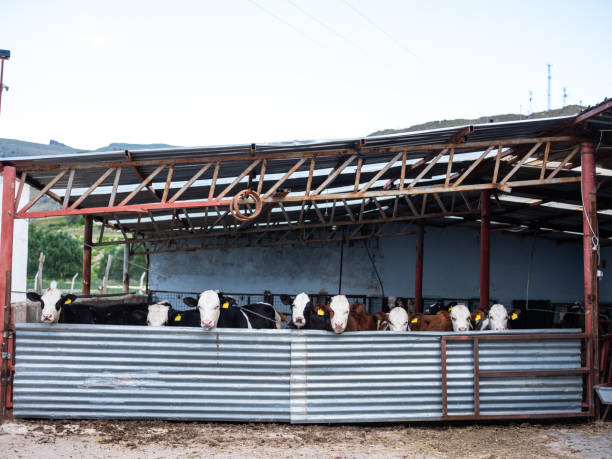

Weather-resistant Open-Side Cattle Shed with Bolt-Together Assembly and Customizable Dimensions

Model Number : KXD001

Walltype : Steel Panel Walls

Area Per Chicken : 450/400 cm²

Payment Terms : L/C,T/T,Western Union

Wire Mesh : Aluminum-zinc-coated wire

Weight : Approximately 1200 kg

Price : 50-100usd

Floor Type : Concrete or Steel Mesh

Supply Ability : 8000 tons

Standard : ASTM, DIN, GB, JIS

Roof : Sandwich Panel, Galvanized Steel Sheet

MOQ : 600sqm

Delivery Time : 20-30 working days

Column Type : H Section Steel

Durability : Weather-resistant, rust-proof coating

Packaging Details : standard

Drainage : Integrated drainage system

Place of Origin : China

Column : H Section Steel

Installation : On-site assembly / Pre-fabricated

Connections : Bolts Connection

Dimensions : Customizable (length, width, height)

Certification : ISO

Brand Name : KXD

Watersupply : Automatic Watering System

Contact Now

Open-Side Pasture Cattle Sheds & Feedlots
Cost-Effective Open-Side Steel Cattle Sheds & Pasture Shelter Canopies
Weather-resistant Open-Side Cattle Shed with Bolt-Together Assembly and Customizable Dimensions
Product Overview
For many pastoral cattle farms and open-range feedlots, the primary requirement is a highly durable, cost-effective structure that provides shelter from sun, wind, and heavy rainfall. Our open-side steel cattle sheds and canopy shelters deliver an efficient, rugged solution designed specifically for beef cattle herds, calf rearing, and agricultural hay or machinery storage.
Featuring a perimeter column design with open or semi-open sidewalls, these structures optimize natural wind flow while providing robust roof cover. Manufactured from structural steel components that are precision-engineered at our factory, this kit functions as a simple bolt-together system that can be deployed quickly in rural or remote farm locations.
Technical Parameter Matrix
Technical Parameter Specification & Pasture Layout Options
Structural Frame Type Light-gauge or heavy welded H-beam steel portal frames / High-galvanized C-section columns
Surface Treatment Hot-dip galvanized or anti-corrosive primer + specialized industrial finish paint coatings
Open-Side Configuration Single-side open, dual-side open, or complete canopy structures with partial wall skirts to block prevailing winds
Roofing Material Options
  • High-tensile corrugated single steel sheet (0.4mm - 0.7mm thickness)
  • Single steel sheet with anti-condensation felt backing
Foundation Connections Heavy-duty steel anchor bolts embedded in concrete footings or piers
Structure Height Typically 4 to 6 meters to balance economic material costs with high natural airflow clearance
Purlin & Girt System High-galvanized C or Z-section steel purlins with zinc-plated connectors
Weather-resistant Open-Side Cattle Shed with Bolt-Together Assembly and Customizable Dimensions
Key Practical Features for Feedlots
1. Maximum Natural Ventilation at Minimal Cost
By omitting solid side walls, these structures utilize natural environmental cross-winds to remove heat, dust, and airborne pathogens from the herd. This open-air layout drastically reduces initial capital expenditure and eliminates ongoing electricity costs for forced mechanical ventilation.
2. Rapid Bolt-Together Rural Assembly
Our pasture shelters are engineered for quick installation. All columns, roof trusses, and purlins are pre-fabricated, pre-punched, and cut to length at our plant. Your local farm crew or contractors can easily assemble the building using standard high-strength bolts, removing the need for specialized welding equipment in remote rural areas.
3. Flexible Multi-Functional Layouts
The clear-span structural design allows the shelter to adapt to shifting farm requirements. The open canopy can easily be divided into holding pens or used for dry hay, silage bale, and tractor storage during the off-season.
Weather-resistant Open-Side Cattle Shed with Bolt-Together Assembly and Customizable Dimensions
Frequently Asked Questions (FAQ)
Q1: Is an open-side cattle shed suitable for areas prone to severe storms or high wind speeds?
A: Yes. Even without walls, the roof structure experiences significant uplift forces during high winds. We custom-engineer the steel member thickness, roof pitch, and cross-bracing matrix based on your local maximum wind speed data to ensure the building remains perfectly stable and anchored during storms.
Q2: How do you prevent condensation from dripping onto the cattle in a single-sheet roof?
A: We offer corrugated steel roofing sheets pre-applied with an anti-condensation non-woven felt on the underside. This felt absorbs moisture when humidity rises and releases it safely through natural ventilation during the day, keeping the bedding and the cattle dry.
Q3: Can these cattle sheds be extended if my herd grows in the future?
A: Yes, absolutely. The modular nature of our pre-engineered steel frames makes expansion simple. You can easily add additional structural bays to either end of the existing shed to increase its length whenever your farm expands.
